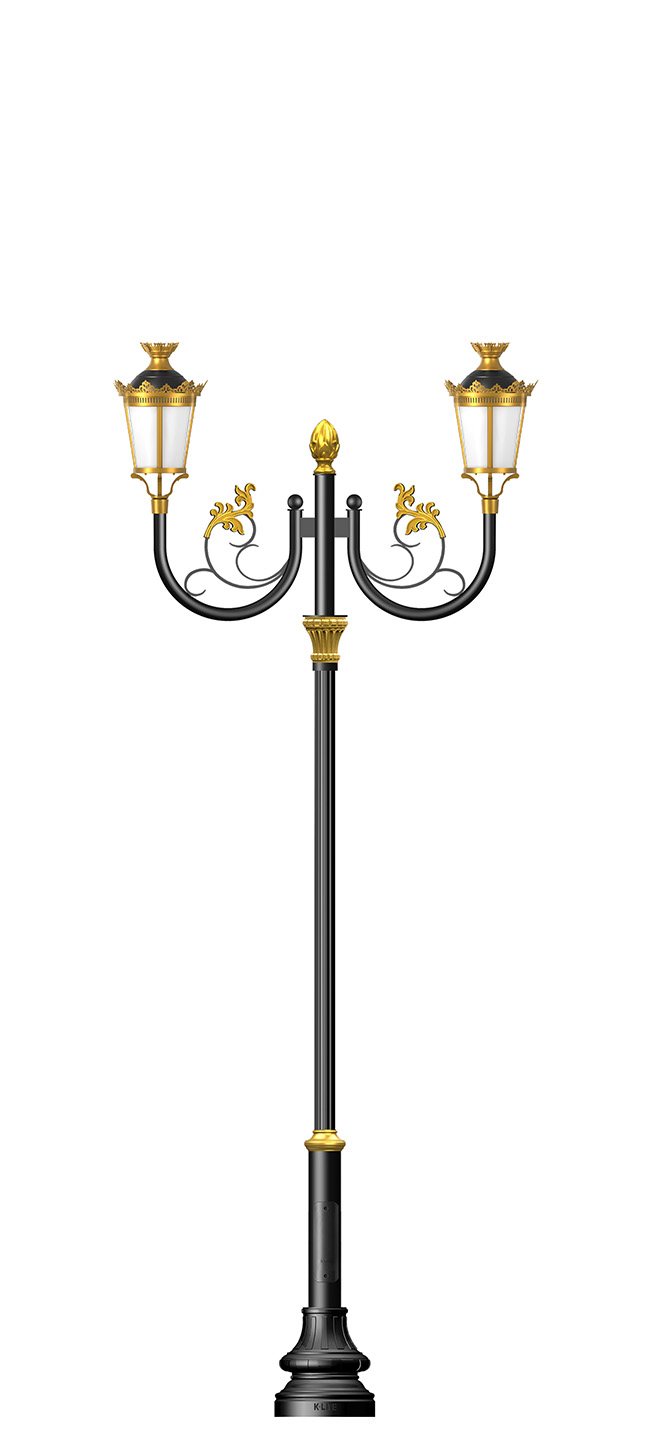

Decorative Street Lighting Pole

TECHNICAL SPECIFICATIONS

• Pole Height Options: 3 m / 4 m / 5 m / 6 m / 7 m / 8 m / 9 m

• Standard Reference Height: 6 m

• Pole Type: Dual-Arm
  (Single-arm & multi-arm configurations available)

• Material: High-grade Mild Steel

• Design: Round Decorative Architectural Profile

• Light Source Compatibility: LED Light

• Rated Power Support: Up to 100 W

• Usage/Application: Outdoor

• Ingress Protection Rating: IP-5

• Bottom Diameter: 114 OD

• Wall Thickness: 3 mm

• Surface Finish (Fabrication): MS Plate

• Foundation Plate Size: 250 × 250 × 10 mm

• Base Plate Material: E250 Grade Structural Steel

• Foundation Bolt Grade: 4.6

• Pole Weight: Approx. 45 kg – 80 kg (height dependent)

• Certification: ISI Certified | CE Conformity

• Country of Origin: Made in India

PRODUCT OVERVIEW

The Decorative Street Lighting Pole is designed to create a distinctive and elegant atmosphere in urban streets, townships, and public spaces. Combining advanced manufacturing technology with refined architectural aesthetics, these poles enhance the visual identity of any landscape while delivering reliable and efficient outdoor illumination.

The decorative round design integrates seamlessly into modern, heritage, and smart city environments. The pole structure supports single, dual, or multiple lighting arms, allowing installation of one or more LED luminaires as per project requirements.

ENGINEERING & CONSTRUCTION DETAILS

• Pole design parameters optimized based on arm configuration, luminaire load, and wind-load calculations

• All pole sections fabricated and welded using special V-groove MIG welding techniques by certified welders

• Built-in control box with die-cast aluminium service door and safety rope for secure maintenance

• Die-cast aluminium door contoured to pole shape with silicone rubber gasket for weather resistance

• Pre-wired control gear tray with MCB protection and loop-in / loop-out terminal connectors

• Elongated foundation bolt holes in base plate for fine alignment during installation

• Base plate manufactured from E250 grade steel ensuring high structural stability

KEY PRODUCT BENEFITS

• Quick and easy installation with low assembly cost

• Strong, stable, and durable construction with excellent wind resistance

• Long operational life with minimal maintenance

• Decorative architectural design for enhanced urban aesthetics

• Wide range of heights and arm configurations

• Fully customizable solutions from concept to completion

AREAS OF APPLICATION

• Main roads and secondary roads

• Parks, gardens, and pedestrian pathways

• Residential areas and private driveways

• Expressways and boulevards

• Shopping centers and commercial complexes

• Resorts, campuses, and building perimeters

• Public places and urban landscapes

INSTALLATION METHOD

Surface-mounted using a heavy-duty base plate and installed on a pre-formed RCC foundation, with elongated anchor bolt slots for accurate leveling and alignment.

SURFACE FINISH & COATING OPTIONS

• Zinc-rich primer for corrosion protection

• Environmentally stable polyurethane (PU) paint

• Pure polyester powder coating

Standard Colour Options:

• Graphite Grey

• Anthracite Grey

• Black

ENGINEERED FOR BEAUTY, BUILT FOR DURABILITY

Our Decorative Street Lighting Poles combine structural excellence, advanced technology, and timeless design, making them the perfect choice for municipal projects, smart cities, residential developments, and premium outdoor spaces.
